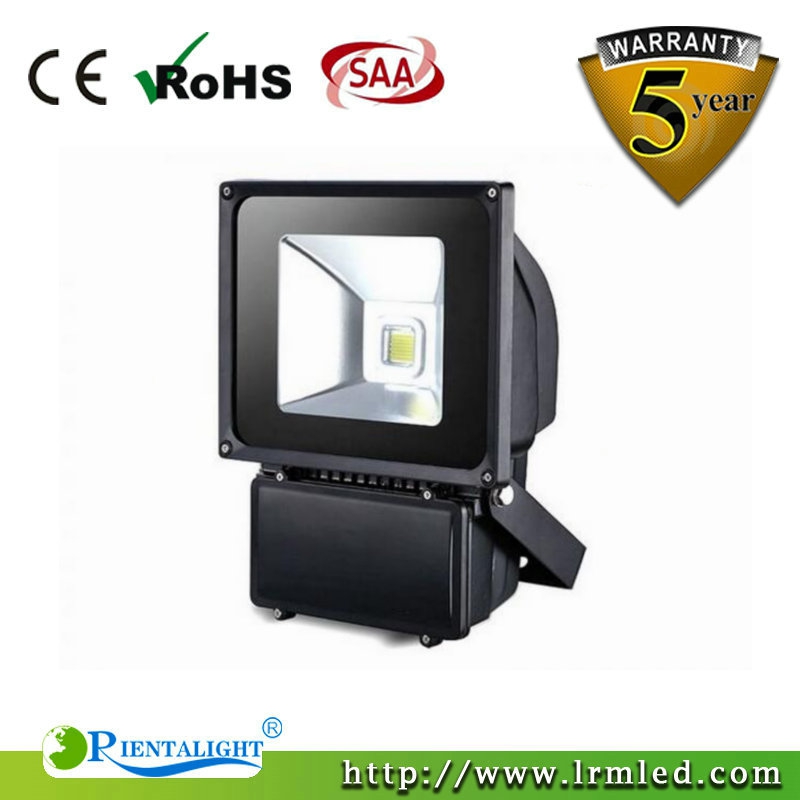

80W COB LED Flood Light

Send Inquiry

Description

Features:
1.Using high power multi-chip COB LED.
2.Energy-saving and environment-friendly.
3.High power LED flood lights, CE Rohs approval.
4.High quality aluminium body,patented cooling body design,anodizing tensile reflector ,acrylic light source enclosure.
5.The unique thermal design and the power supply box is a perfect combination,reasonably using movement of air from all directions,effectively improving heat conduation,thereby reducing the lamp body temperature,so that LED could be in the best working environment in order to ensure light and power supply life.
6.With constant current constant voltage control circuit,applied voltage width(AC85V-265V),overcome the light instability because of no using  ballast (Using ballast create generation grid and noise pollution which make the light instability),avoiding bringing stimulus and fatigue to eyes in working.
7.IP Grade:IP65
8.No hazardous matetials & fully RoHS-compliant.


Specification:

Item No.: FL180
Product Model: LM-FLG360B080Y01-CW
Power (W): 80Watts
Size(mm): 360*290*100mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux:   9600lm
LED Quantity:   1 Pc
Led Type: Bridgelux  Chip LED
Beam Angle: 120°
CRI: 80Ra
PF: 0.95
IP Grade: IP65
LED Driver: MEANWELL
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Lifespan: 50,000hours
Warranty: 3 years

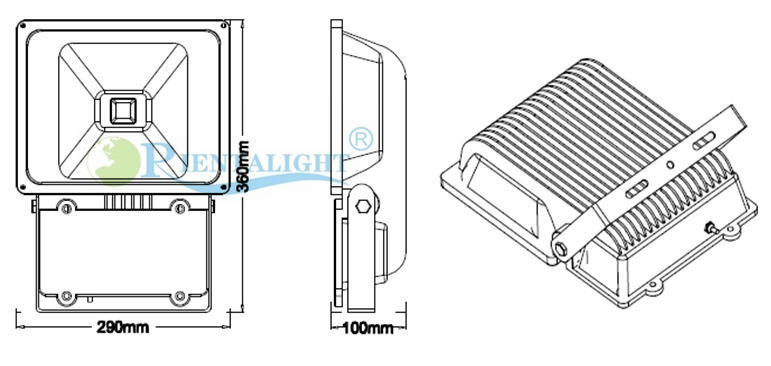

Dimension:

Aging Test:





Application:
COB led flood light is suitable for applications in billboard, buildings,corridor,landscape, show window, garage, supermarket,squares,tunnel, security lighting etc.


Notice for User:

·Please turn off power before installation.
·Pay attention to the voltage before using,after connectiong the power line, please make sure the wiring section is insulated.
·Do not press LED surface.
·Do not take apart the product or replace mechanical and electronic components.
·Do not stare at the light for a long time as it may cause injury to eyes.
·If any doubt about the installation or use of this product, consult a competent electrician or technician.
