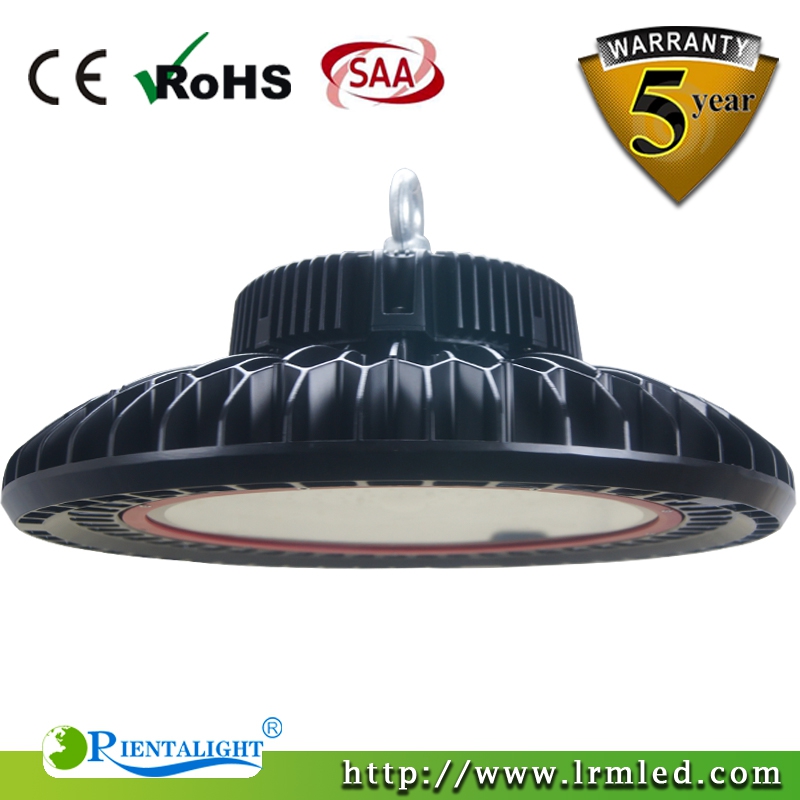

150W industrial led high bay light
Features:
Features:
1) High Luminous Efficiency, up to 130lm/watt.
2) Super brightness Osram LED chip, LM80 report available.
3) Superly reliable well-known brand Meanwell HBG LED driver, which with built in 1-10V dimming function.
4) Unique appearance, innovative heat sink design ensures superior heat management.
5) Low operating temperature, makes it extremely verstile under different easy/ hard operating conditions.
6) Color temperature 3000k, 4000k and 6000k are all available, or we could customize the CCT as per customer‘s demand.
7) Superior color rendition compared to conventional luminaire, CRI>80.
8) Global Voltage Input 90-305VAC, 50/60Hz.
9) Light weight, 30%-50% shipping cost saving.
10) Easy installation, suspending installation or wall mounted.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) CE and RoHS approved.
16) 5 Years Warranty.
2) Super brightness Osram LED chip, LM80 report available.
3) Superly reliable well-known brand Meanwell HBG LED driver, which with built in 1-10V dimming function.
4) Unique appearance, innovative heat sink design ensures superior heat management.
5) Low operating temperature, makes it extremely verstile under different easy/ hard operating conditions.
6) Color temperature 3000k, 4000k and 6000k are all available, or we could customize the CCT as per customer‘s demand.
7) Superior color rendition compared to conventional luminaire, CRI>80.
8) Global Voltage Input 90-305VAC, 50/60Hz.
9) Light weight, 30%-50% shipping cost saving.
10) Easy installation, suspending installation or wall mounted.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) CE and RoHS approved.
16) 5 Years Warranty.
Specifications:
Item No.: HB6150
Product Model: LM-HBG340O150Y06-WW/NW/CW
Power (W): 150Watts
Size(mm): ¢340*187mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux: 20300lm
LED Quantity: 175Pcs
Led Type: OSRAM/Philips/Nichia LED
Beam Angle: 120°
CRI: 85Ra
PF: 0.95
LED Driver: MEANWELL
Lifespan: 50,000hours
Warranty: 5 years
Dimmesions(mm):
.jpg)
| Product Model | Power(W) | size(mm) | Color(CCT) | Input voltage(V) | LED Type | LED Source | Luminous |
| LM-HBG340O100Y06-WW/NW/CW | 100W | Φ340*187mm | 3000k/4000k/6000k | AC90-305V 50/60Hz | Osram/Nichia/Philips | SMD3030 | 13500lm |
| LM-HBG340O150Y06-WW/NW/CW | 150W | Φ340*187mm | 3000k/4000k/6000k | AC90-305V 50/60Hz | Osram/Nichia/Philips | SMD3030 | 20300lm |
| LM-HBG395O200Y06-WW/NW/CW | 200W | Φ395*196.5mm | 3000k/4000k/6000k | AC90-305V 50/60Hz | Osram/Nichia/Philips | SMD3030 | 27000lm |
| LM-HBG395O240Y06-WW/NW/CW | 240w | Φ395*196.5mm | 3000k/4000k/6000k | AC90-305V 50/60Hz | Osram/Nichia/Philips | SMD3030 | 32400lm |
Installation:
Applications:
Applications in buildings, factory, warehouse, work shop, large supermarket,gymnasium, stadiums, squares, industrial lighting etc.
