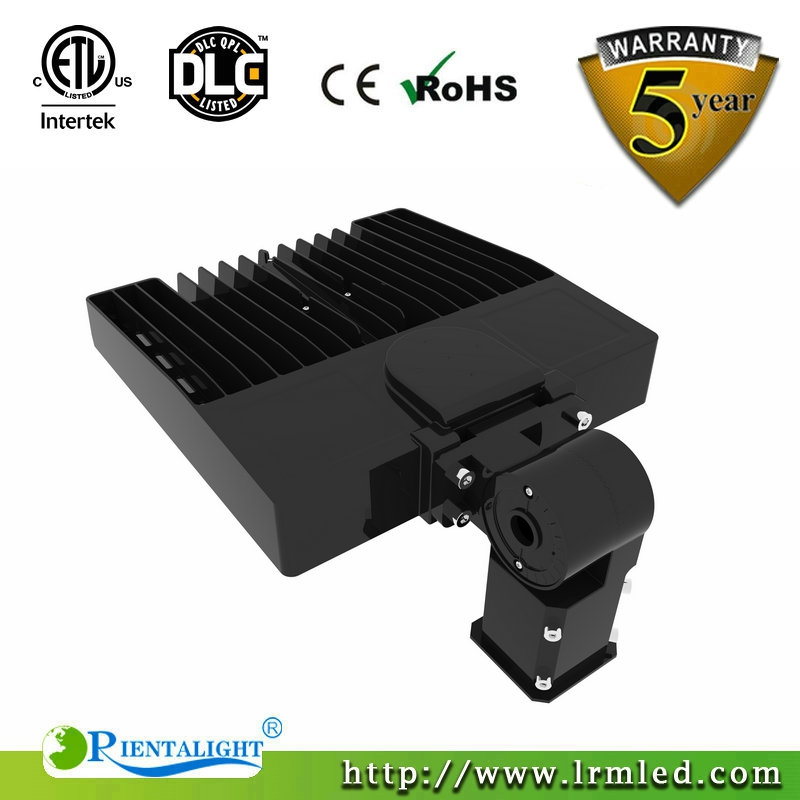

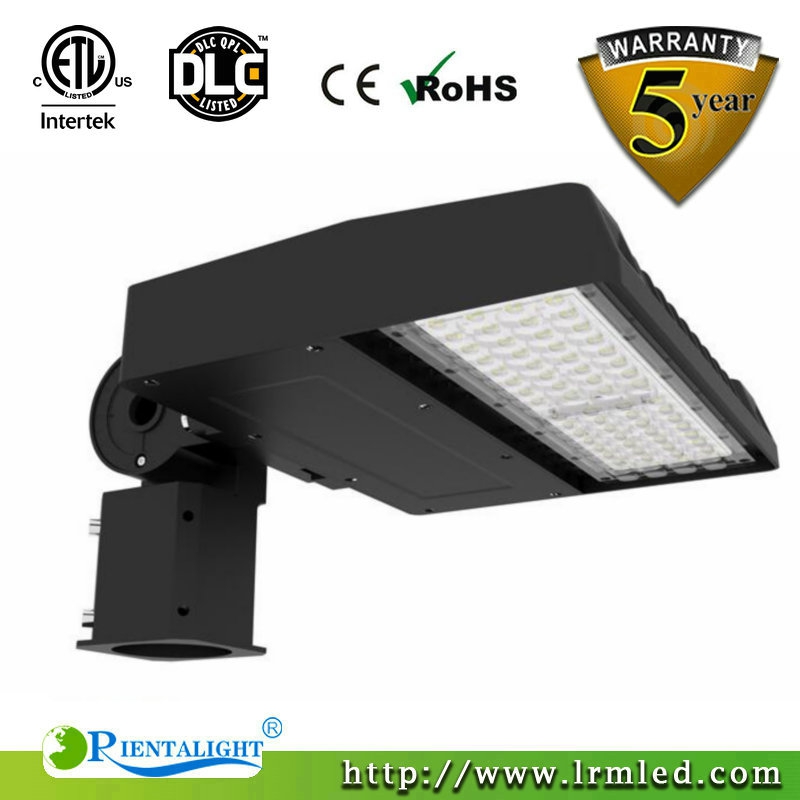

100w led shoebox light

Send Inquiry

Description

100w led shoebox light is ETL and DLC QPL listed product with unique patented aluminium die cast design ensures superior heat management, high light efficiency up to 130lm/W.100w led shoebox light can directly replace 250w HID, HPS and Metal Halide light, saving much energy and saving electric cost on the bill.

Features:

1) ETL, CETL and DLC 4.0 premium approval,  CE and RoHS approval.
2) High brightness Philips SMD 3030 LED chip, LM80 report available.
3) High Luminous Efficiency, up to 130lm/W.
4) Super reliable Mean Well LED Driver or UL approval MOSO led driver to realize long-term reliable and stable working without failure and maintenance.
5) Unique patented Aluminium die cast design ensures superior heat management, electrostatic & spray processing, anti ageing, corrosion resistant.
6) Special structure design for washing off the birds droppings.
7) Beam angle: 70*140°.  Reasonable light distribution to ensure an ideal uniformity of brightness on the road surface, keep the LED lighting efficiency on a high level, no glare.
8) Color temperature 3000k, 4000k, 5000k and 6000k are all available, or we could customize the CCT as per customer‘s demand.
9) Superior color rendition compared to conventional luminaire, CRI>80.
10) Global Voltage Input 90-305VAC, 50/60Hz.
11) IP Grade: IP65, can be used for outdoor harsh environment.
12) Low energy consumption, 75-300W led shoebox light can be direct replacement for up to 250-1000W HID/HPS/MH etc.
13) Photocell sensor is optional for all the shoebox lights, more energy saving and easy maintenance.
14) Four types of installation kits are optional. Lamp can be mounted on round and square poles, walls, brackets according to your request.
15) Resistant to shock and vibration.
16) Start without delay and flicker free. Instant ON/OFF operation.
17) Long operation life time, above 50,000hours. Low maintenance costs.
18) 5 Years Warranty.

Specifications:

Item No.: SB1100
Product Model: LM-SBG231P100Y01-WW/NW/CW
Power (W): 100 Watts
Size(mm): 231.2*290.4*73mm
The hole of lamp-post: Φ62mm
Input Voltage(V): AC90-305V 50/60Hz
Color Temperature(CCT): 3000K/4000K/5000K/5700k/6000K Or customize other CCT upon customer‘s demand.
Luminous Flux:   130lm/W
LED Quantity:   128 Pcs
Led Type: PHILIPS
Beam Angle: 70*140°
IP Grade: IP65
Power Supply Brand: Mean Well
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Operating Temperature: -40-60℃
CRI: >80
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years

Dimensions:




More details:


Exploded View:



Four Types of Installation Kits:


Applications:

LED Shoebox Light can be widely used in urban roads, parking lot, high way, industrial areas, sidewalks, squares, parks, gardens, schools, residential areas etc.

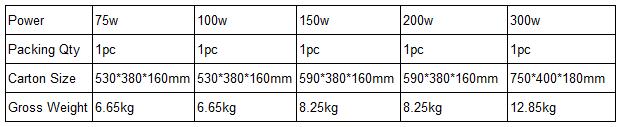

Packing:







Cautions:

·Pay attention to the voltage before using.
·Don‘t press LED surface.
·Don‘t take apart the product or replace mechanical and electronic components.
·Don‘t stare at the strong light for a long time as it may cause injury to eyes.
