The new design LED street lights from Orientalight are available in 50W, 60W, 100W, 120W, 150W, 180w, 200w, 250w and 300w models, with lumen output ranging from 7,000 lm to 42,000 lm. which enable you use small power to replace high power of traditional ineffient high pressure sodium light and metal halide light, which can help you save lots of money on electric bill.This special deigin of modular LED street light engines to provide superior performance and reliable efficiency in a scalable architecture,this sereis of led street light will combine seamlessly into any retrofit lighting or new roadway lighting project.
Features:
Item No.: SL4180
Product Model: LM-SLG567O180Y04-CW
Power (W): 180 Watts
Size(mm): 567*320*107mm
The hole of lamp-post: Φ64mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/5000K/6000K
Luminous Flux: 25200lm
LED Quantity: 336Pcs
Led Type: OSRAM 3030(EMC)
Beam Angle: 155*80°
IP Grade: IP66
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Operating Temperature: -40-60℃
LED Driver: Mean Well
CRI: >70
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years

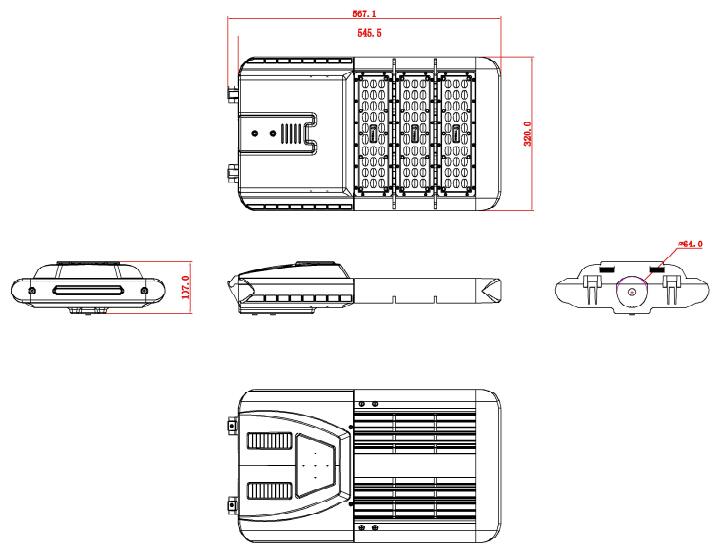

Dimension:

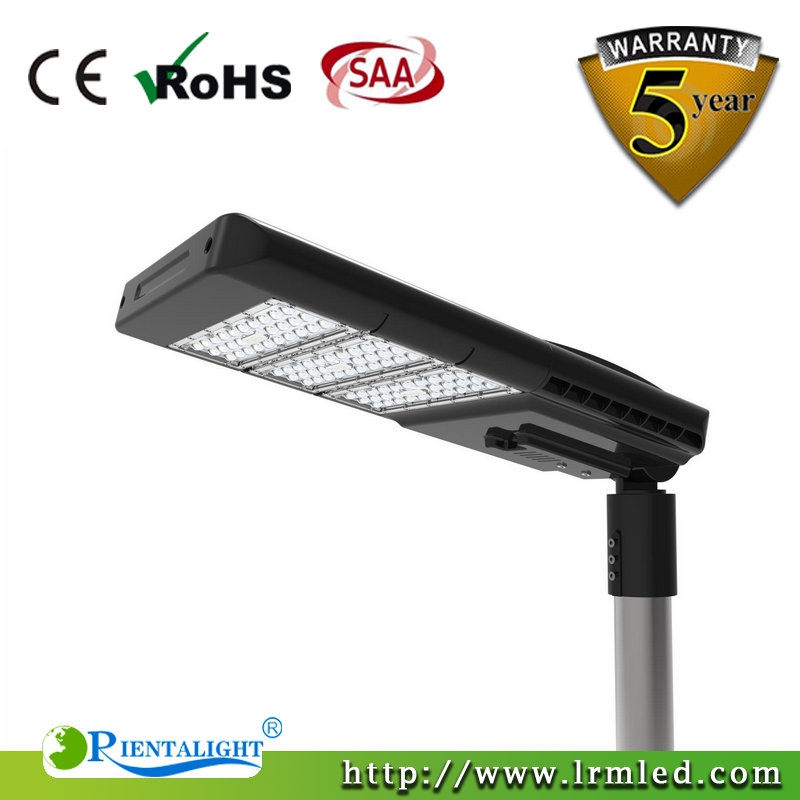

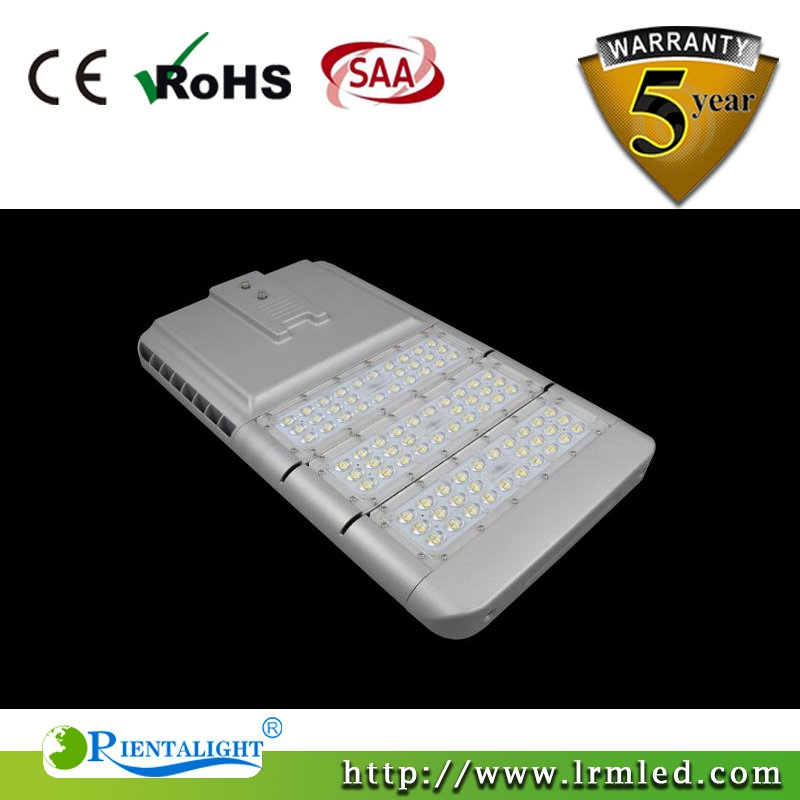

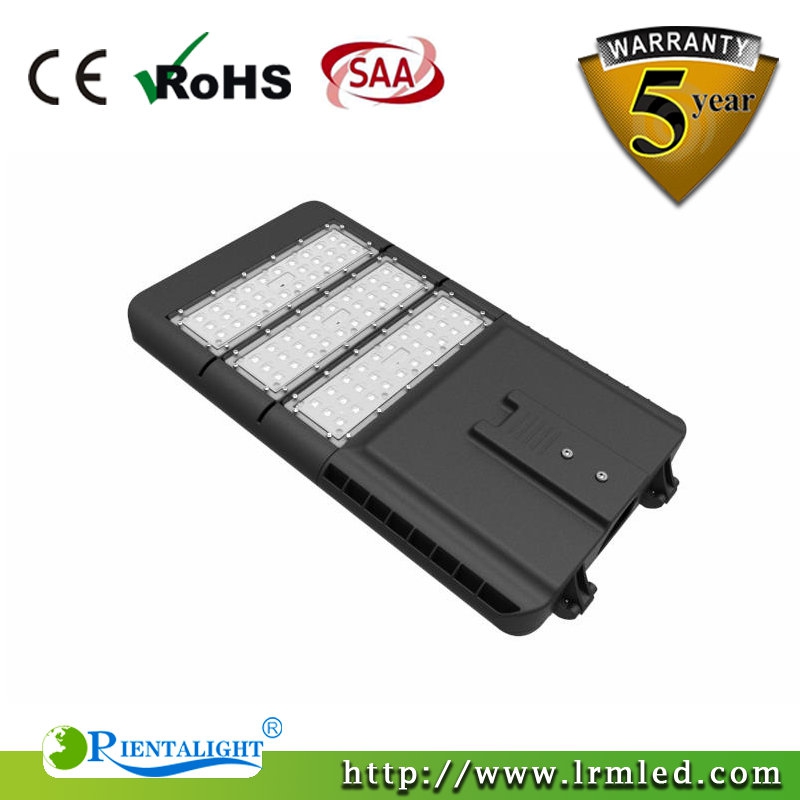

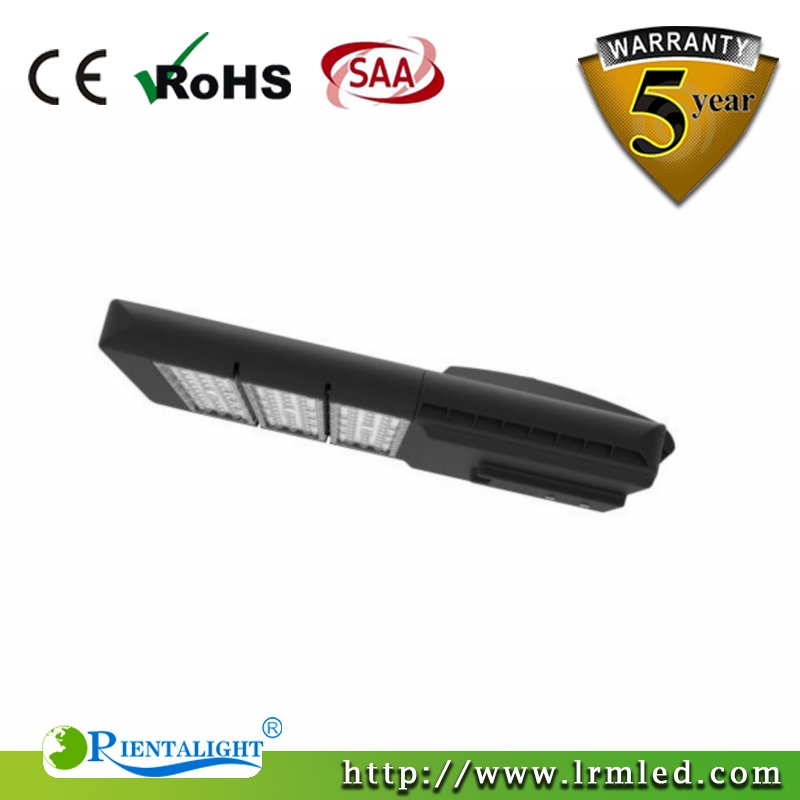

Product Show:
.jpg)
.jpg)
.jpg)
.jpg)
Product Exploded View:
Applications:
LED Street Light can be widely used in municipal road, urban road, parking lot, high way, industrial areas, sidewalks, squares, parks, gardens, schools, residential areas etc.
.jpg)
Notice for User:
·Please turn off power before installation.
·Pay attention to the voltage before using,after connectiong the power line, please make sure the wiring section is insulated.
·Do not press LED surface.
·Do not take apart the product or replace mechanical and electronic components.
·Do not stare at the strong light for a long time as it may cause injury to eyes.
·If any doubt about the installation or use of this product, consult a competent electrician or technician.
